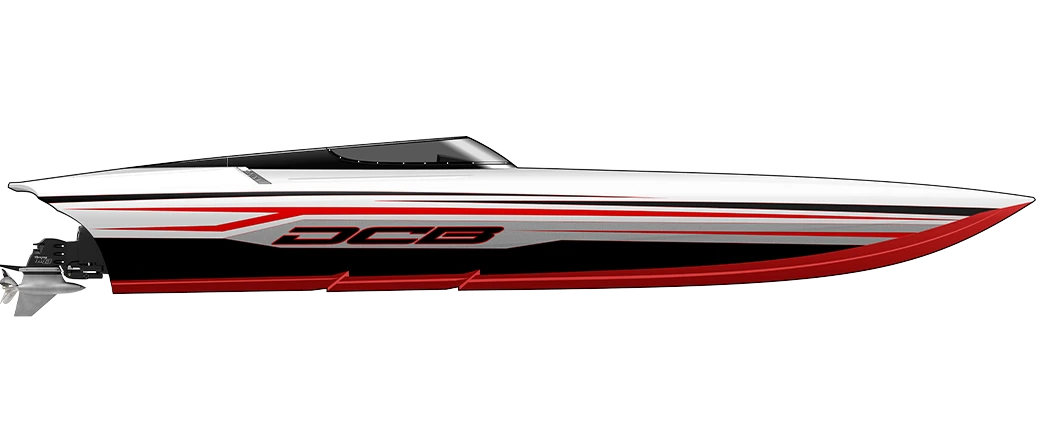

M41

DCB

M41

Length

40’10”

Beam Width

10’10”

Cockpit Width

89″

Avg. Weight

9,500-10,000 lbs

Fuel Capacity

2 x 125-gallon

$1,159,995.00

Technical Data & Standard Equipment

Length	40’10”
Beam Width	10’10”
Hull Style	Center Pod Tunnel
Cockpit Seating	6
Cockpit Width	89″
Fuel Capacity	2 x 125-gallon
Avg. Weight	9,500-10,000 lbs

Designed in CAD • Class-A surfacing • Plug & mold development built from CNC tooling
Vacuum infused resin (VIR) process, balsa composite lamination schedule
Full wrap around windshield 5/8″ thick acrylic w/ billet center brace
Carbon-fiber stiffening – included in M41 pricing
Carbon-Kevlar – running surface included in M41 pricing
Foam core – included in M41 pricing
Gelcoated deck hatches with electric engine hatch actuators
One piece inner-liner cockpit • Molded swimstep w/ billet grab handles
Blue-printed running surface
DCB premium quality rigging, installation and workmanship • Rigged to NMMA & USCG standards
SeaDek boarding kit in black or grey • Polished stainless rubrail
DCB standard decal pkg for boat and trailer, 21 decals
3 – 1500 GPH bilge pumps with automatic floats
2 – 4″ bilge blowers

High gloss white gel coat with black windshield register • Custom bow and stern half cap

Wes Jones Design • Gel coat • SeaDek • Interior • Carpet • UP TO 20 RENDERINGS
Additional design work will be an additional charge

2 x 125 gallon IMCO TIG welded aluminum EPA compliant fuel tanks ~ 250 total gallons

1 Garmin 743 7″ helm screens multi function for navigation and engine data
Mercury zero effort digital controls
Mercury SmartCraft connect, compatible with Garmin • GPS 24XD antenna
Isotta steering wheel • IMCO billet tilt helm

C-zone switching and digital battery management
3 Odyssey 1500 Marine deep cycle batteries, 1 for each engine plus the house
Pronautic smart marine battery charger

Billet LED navigation lights (red/green) • Nav/anchor light pole
Digital RGBW courtesy mood & accent lighting (under dash, combing panels, cup holders, speakers, storage, steps)

6 fenders • 6 DCB fender sleeves • 6 dock lines

Poker run bucket style seating 6 seater
Fiberglass seatback with one-color gelcoat
Single-piece padded 100% Alcantara dash pad (reduces windshield glare)
Premium vinyl, French stitching
Custom plush 1-color snap-in carpet with DCB or M41 logo
DCB M-series embroidery package
1 12-volt receptacles • 2 USB ports • 2 glove boxes

Exclusive DCB billet parts 100% hand polished SS fasteners
8 SS half-inch pre-sewn pin cleats • 8 SS pull-up cleats • 8 LED cup holders
2 DCB prop shaft covers • Garelick 3-step w/ integrated C-zone warning sensor
1 SS bow eye w/ reinforced backing plate • 2 SS stern eyes w/ reinforced backing plate
3 battery boxes • 6 grab handles

Phase 1 Stereo unit
Fusion marine bluetooth/ Wifi 770 head unit • 4 JL Audio 7.7″ speakers • 2 JL Audio 6.5″ speakers

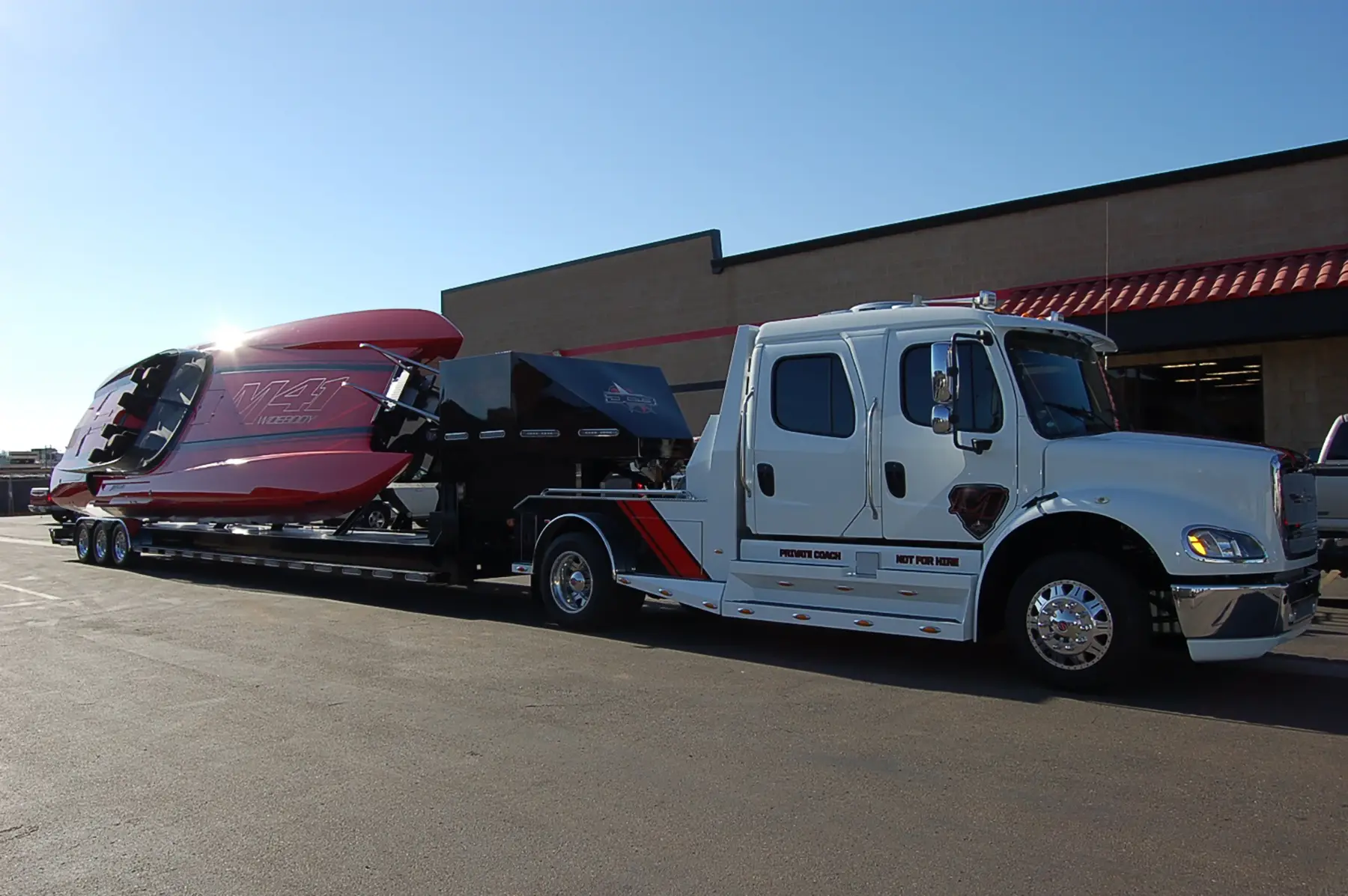

10″ Steel box frame, tandem torsion axles and dual electro-hydraulic disc brakes
16″ aluminum wheels & tires w/ spare • 2 tie down ratchet straps • NO drive guard
Steel fenders, standard LED light pkg • Oversize flag/strobe light pkg
2 manual winch’s, 1 forward 1 down • Spare tire mount
1 hand rail courtesy ladder

Each new boat purchase includes 1 Lifeline jacket at N/C ($795)
USCG approved mounted horn • Kill switch lanyard w/ wrist strap
2 chrome fire extinguisher with billet bracket • 1 Fireboy extinguisher
DCB is a proud supporter of www.PerformanceBoatSchool.com

"*" indicates required fields

Client Information

Client Name*

First Last

Client Information End

Stepped Center Pod Tunnel

Stepped Center Pod Tunnel Base Package

Test thing

Stepped Center Pod Tunnel Base Package

Tooltip

Stepped Center Pod Tunnel Base Package

Included

$0.00

Hull Options Sub-Total

Hull Options Total

Stepped Center Pod Tunnel Hull End

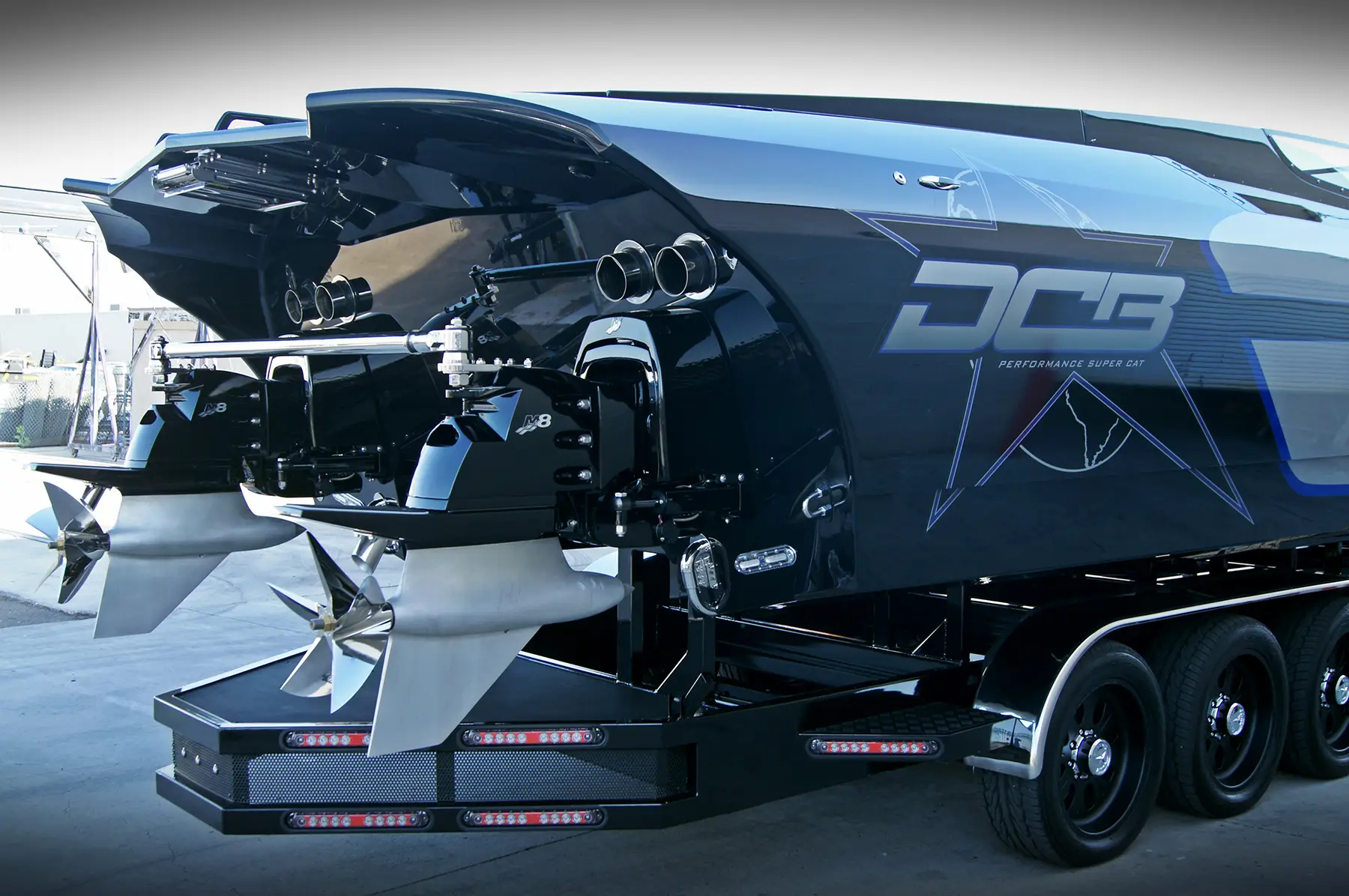

Engine

Engine Choice

Test thing

Mercury Racing 1100 CC w/M8

Tooltip

Mercury Racing 1100/1350 CC w/M8

Tooltip

Mercury Racing 1350/1550 DL w/ M8

Tooltip

Mercury Racing 1100 CC w/M8

$0.00

Mercury Racing 1100/1350 CC w/M8

$40,000.00

Mercury Racing 1350/1550 DL w/ M8

$90,000.00

Mercury Racing

Mercury Racing custom painted blocks

Fuel Tanks

Add 2 30 gal fuel tanks for 112 octane (4 tanks total)

Wilson CNC

Wilson CNC machine profiled lower units (including labor and freight both ways)

Engine Options Sub-Total

Engine End

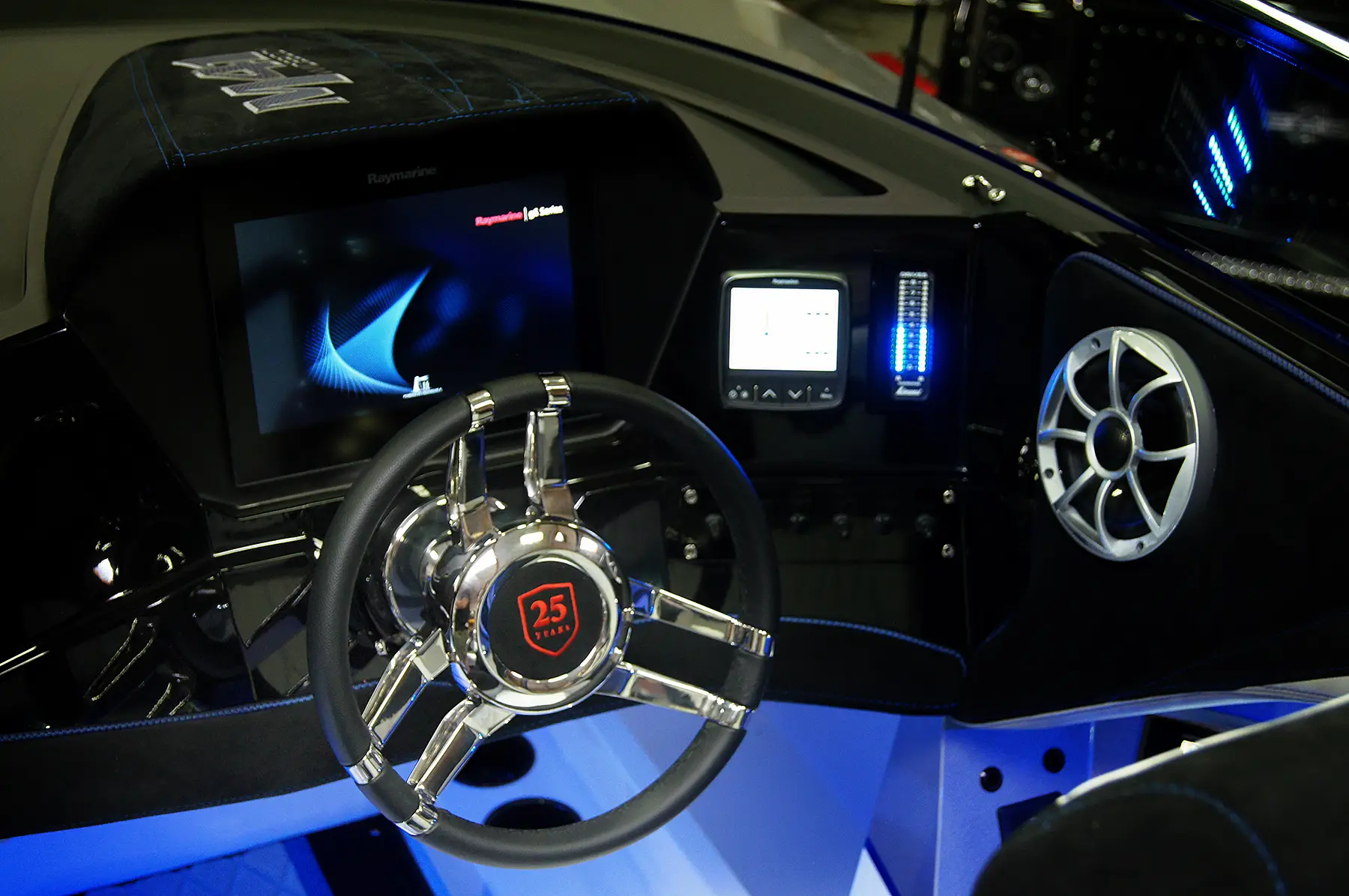

Drive/Steering

Drive/Steering Base Package

Test thing

Drive/Steering Base Package

Tooltip

Drive/Steering Base Package

Included

$0.00

100% Alcantara wrapped Isotta wheel

Mercury CNC over-hub cleaver propeller

Dual Helm Configuration

Transom assembly color option x2

Drive color option x2

Teague drive aerator kit M6

Teague drive aerator kit M8

Drive Options Sub-Total

Drive Subtotal

Cowling End

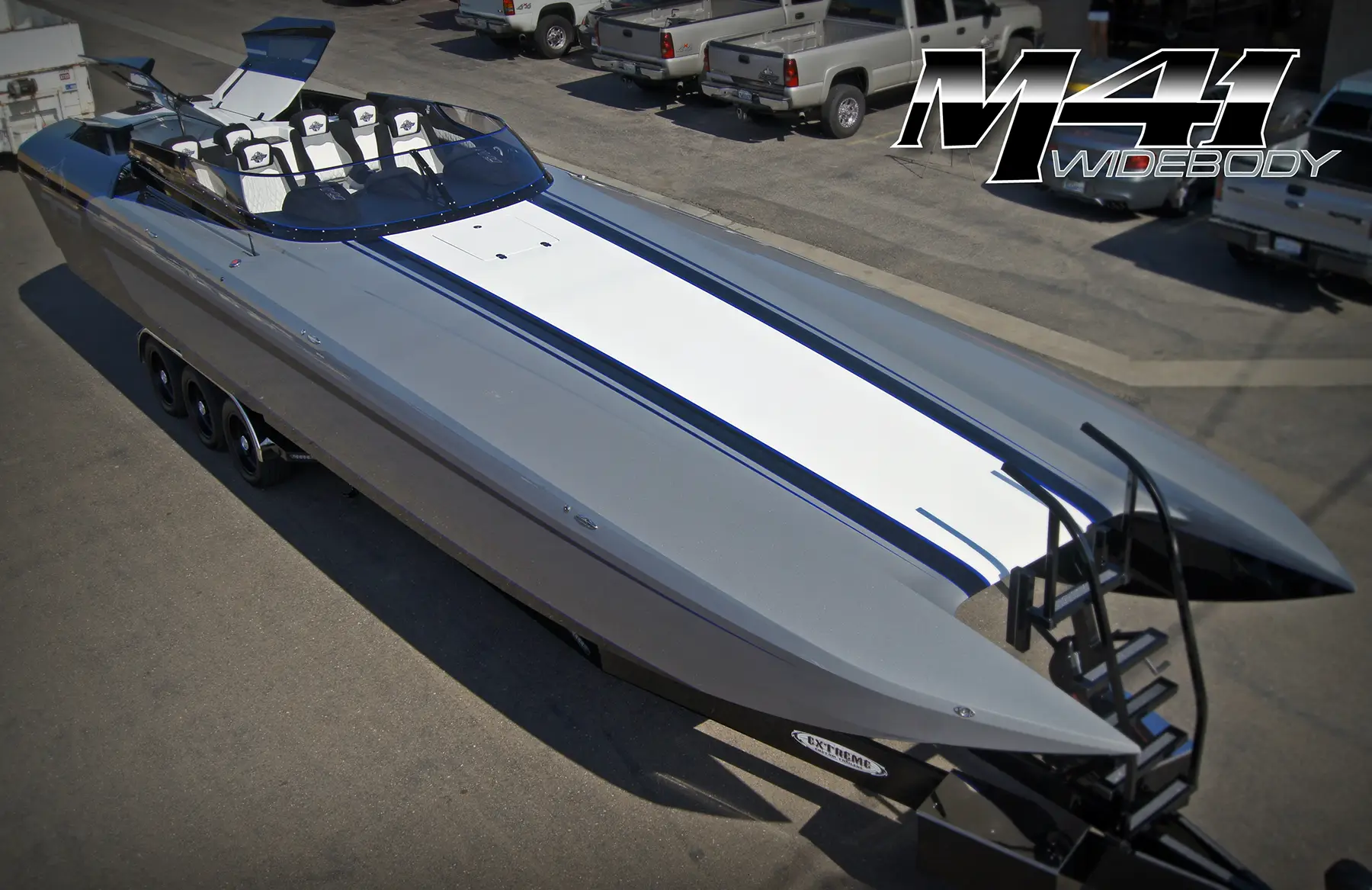

Gel Coat/Graphics

Gel Coat/Graphics Choice

Test thing

Gel Coat Base Package

Gel coat design stage #1

Gel coat design stage #2

Gel coat design stage #3

Gel coat design stage #4

Custom

Custom Graphic Design

Test thing

Custom Graphic Design

Tooltip

Custom Graphic Design

Included

$0.00

Custom full cap (1 color)

Custom full cap with color crossing bond line

Custom full cap with color crossing bond line (charge per line)

# of Crossing Bond Lines

Please enter a number from 1 to 10.

This field is hidden when viewing the form

Total Crossing Bond Line Money

Bond Line Total

Price: $0.00

Powder coated rub rail (1 color)

Custom painted rub rail to match gel graphics

Upgrade foam core 6

Upgrade foam core

Gel Coat & Graphics Sub-Total

Gel Coat & Graphics Total

Gel Coat/Graphics

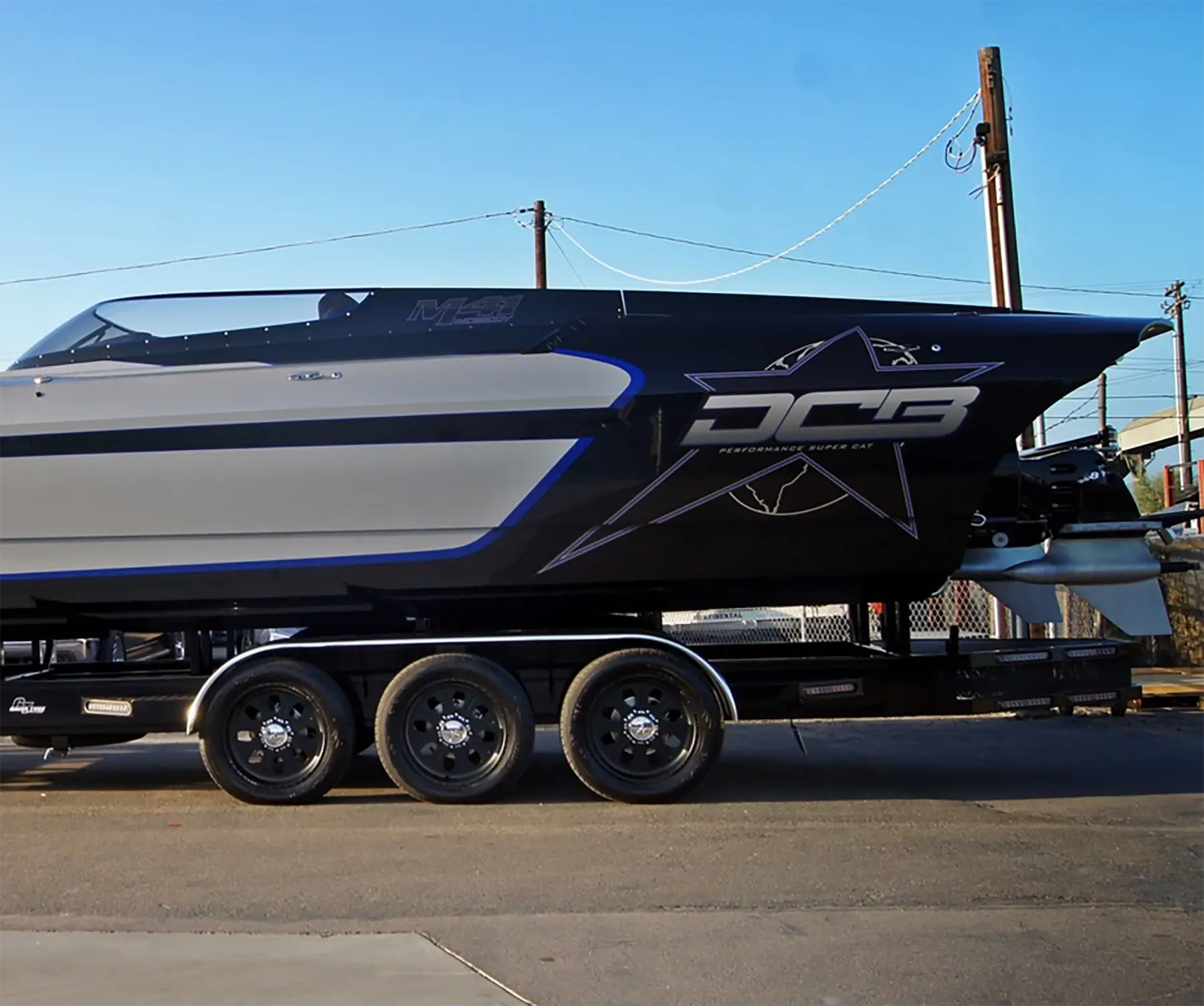

DCB Branding

Gel deck DCB branding

(up to 3 colors or carbon)

Gel 2x side DCB branding

(up to 3 colors or carbon)

Gel top of tunnel DCB Branding

Vinyl USCG name and hailing port

Branding Options Sub-Total

Branding Options Total

DCB Branding

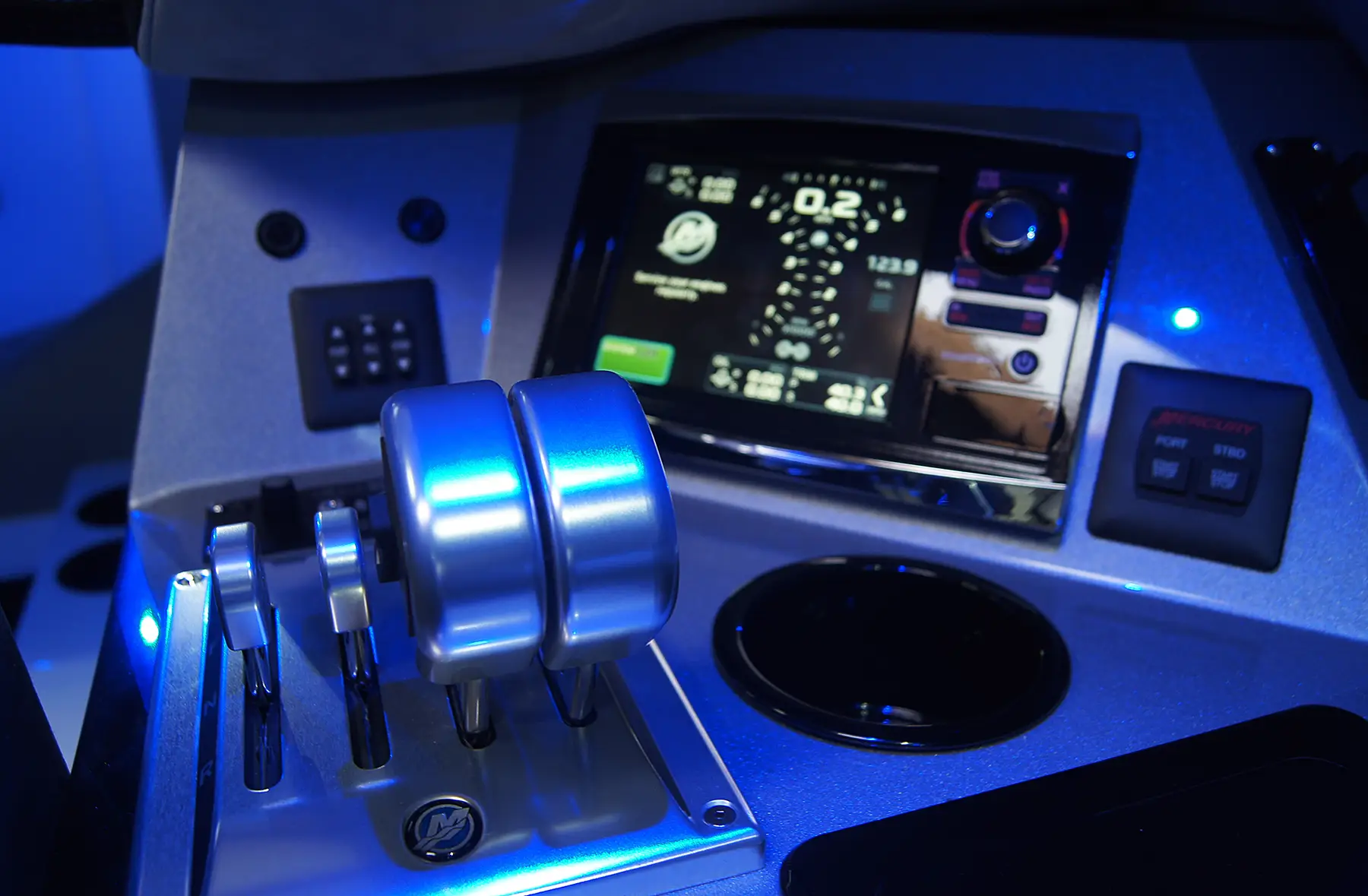

Rigging

Hardware Base Package

Test thing

Hardware Base Package

Tooltip

Hardware Base Package

Included

$0.00

6 Billet aluminum cleat

Upgrade black anodized with lasered DCB

Blackout package

Shifter knobs 2 throttle knobs

Black or powdercoat color match

Billet sand shower

Front sponson - fresh water use only

Pull out shower

Rear fresh water use only

Rigging Options Sub-Total

Rigging Options Total

Rigging

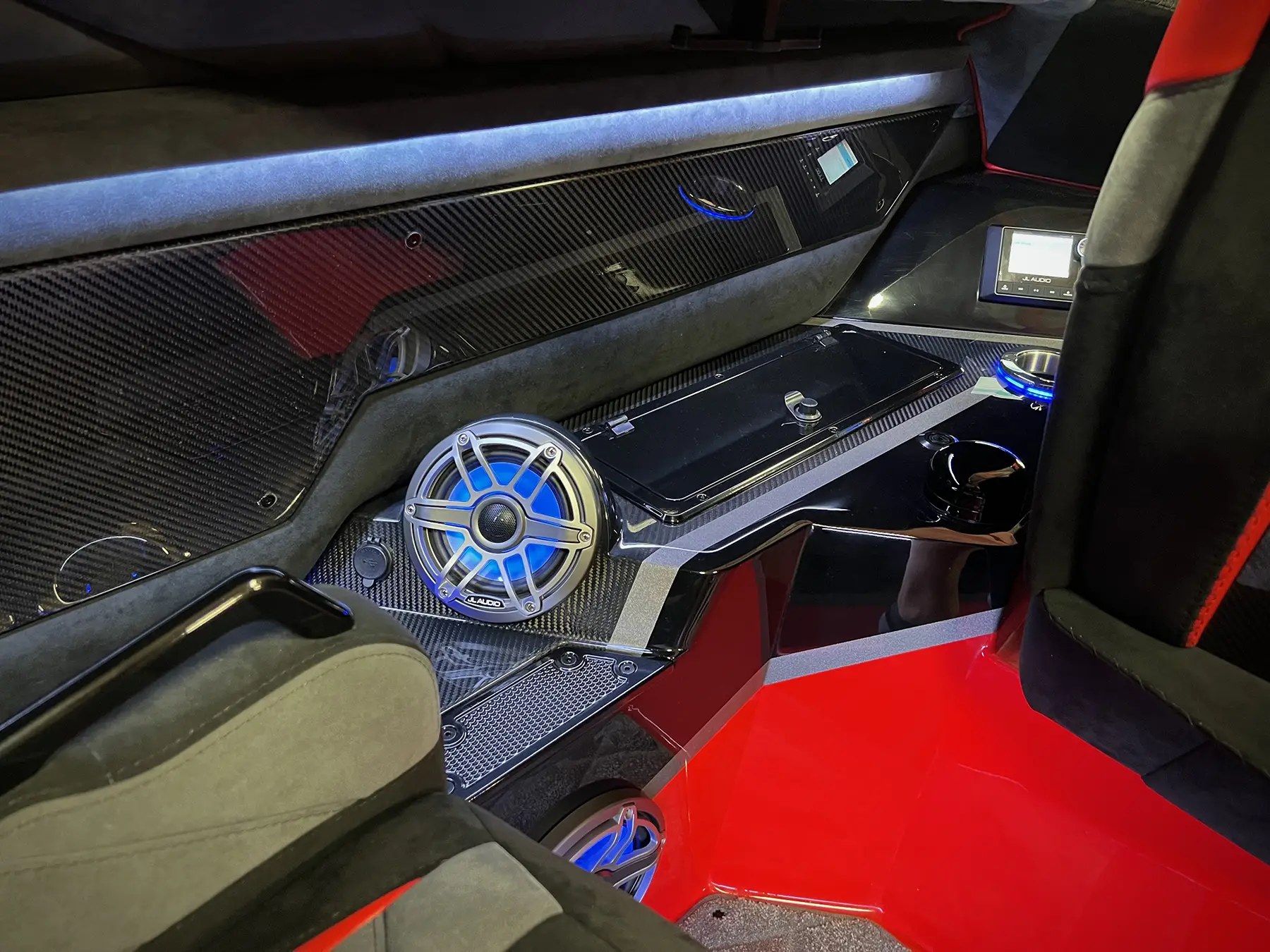

Carbon Fiber Accents

Carbon fiber tie-bar cover

Carbon fiber dash

Carbon fiber exterior transom

2 front seatbacks carbon fiber insert

Exposed Carbon Graphics

Exposed carbon graphics

Priced and Sized by Location

Carbon Fiber Options Sub-Total

Carbon Fiber Total

Carbon Fiber Accents

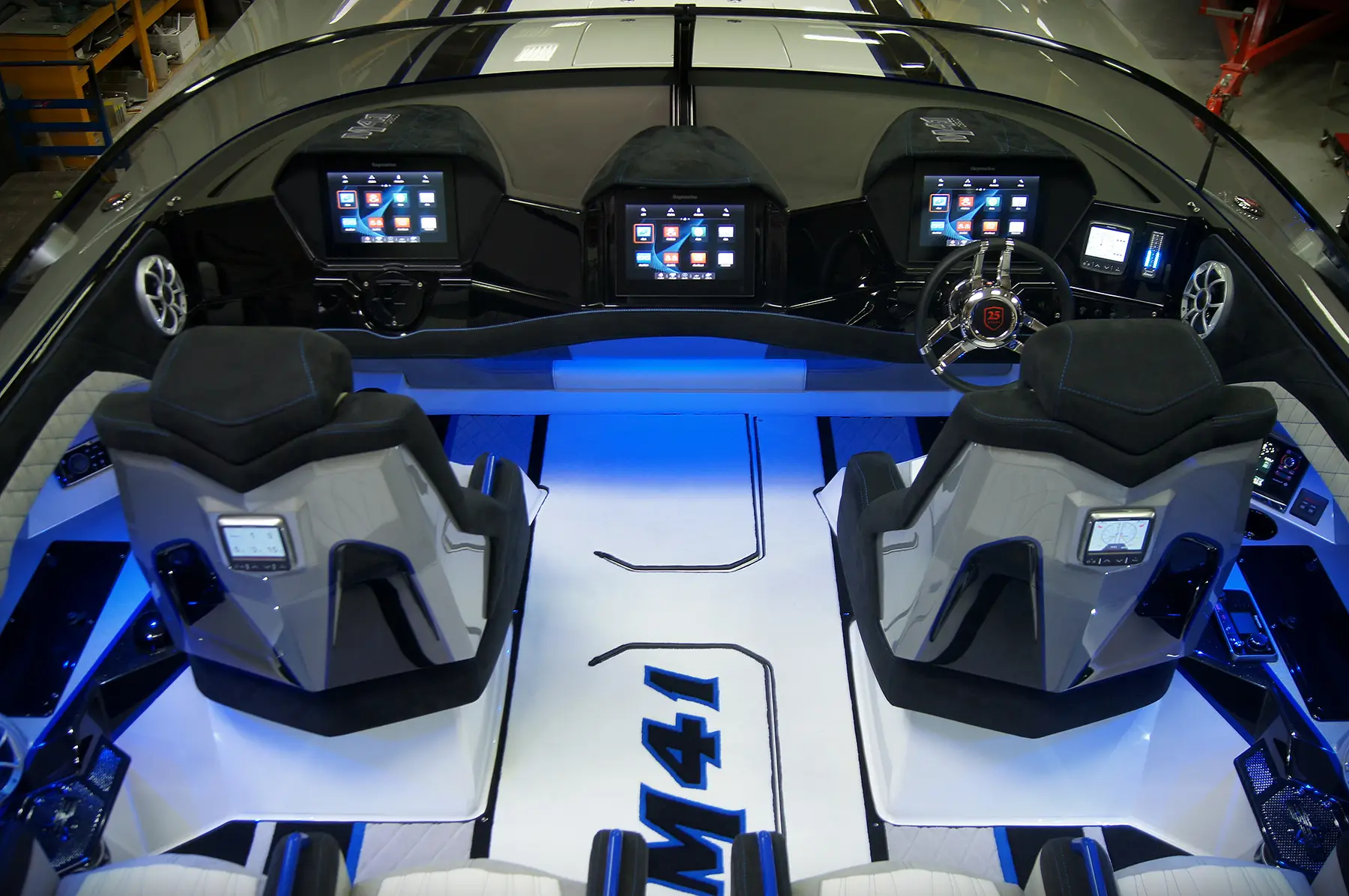

Electronics

Electronic Base Package

Test thing

Electronic Base Package

Tooltip

Electronic Base Package

Included

$0.00

Intercom

Intercom Choice

Test thing

No Intercom

6-person intercom system

Garmin

Gauges & Controls Package

Test thing

Gauges & Controls Package

Tooltip

Gauges & Controls Package

Included

$0.00

Garmin Choice

Test thing

No Upgrade

Garmin 743 to Garmin 943

Garmin 743 7" to Garmin 9213 13" 4k

Garmin TD50 touch screen digital speedometer

Test thing

2 Garmin TD50 touch screen digital speedometer, in back of headrest

Tooltip

Custom

Rear-view camera mounted on transom

Furuno DT800 through hull depth & water temp transducer

(3) sodium/lithium lightweight battery

3 sodium/lithium lightweight battery

(reduces weight by 90lbs)

Audio-video streaming interface with WIFI 4K

Flir night vision camera

Electronics Sub-Total

Electronics Total

Electronics

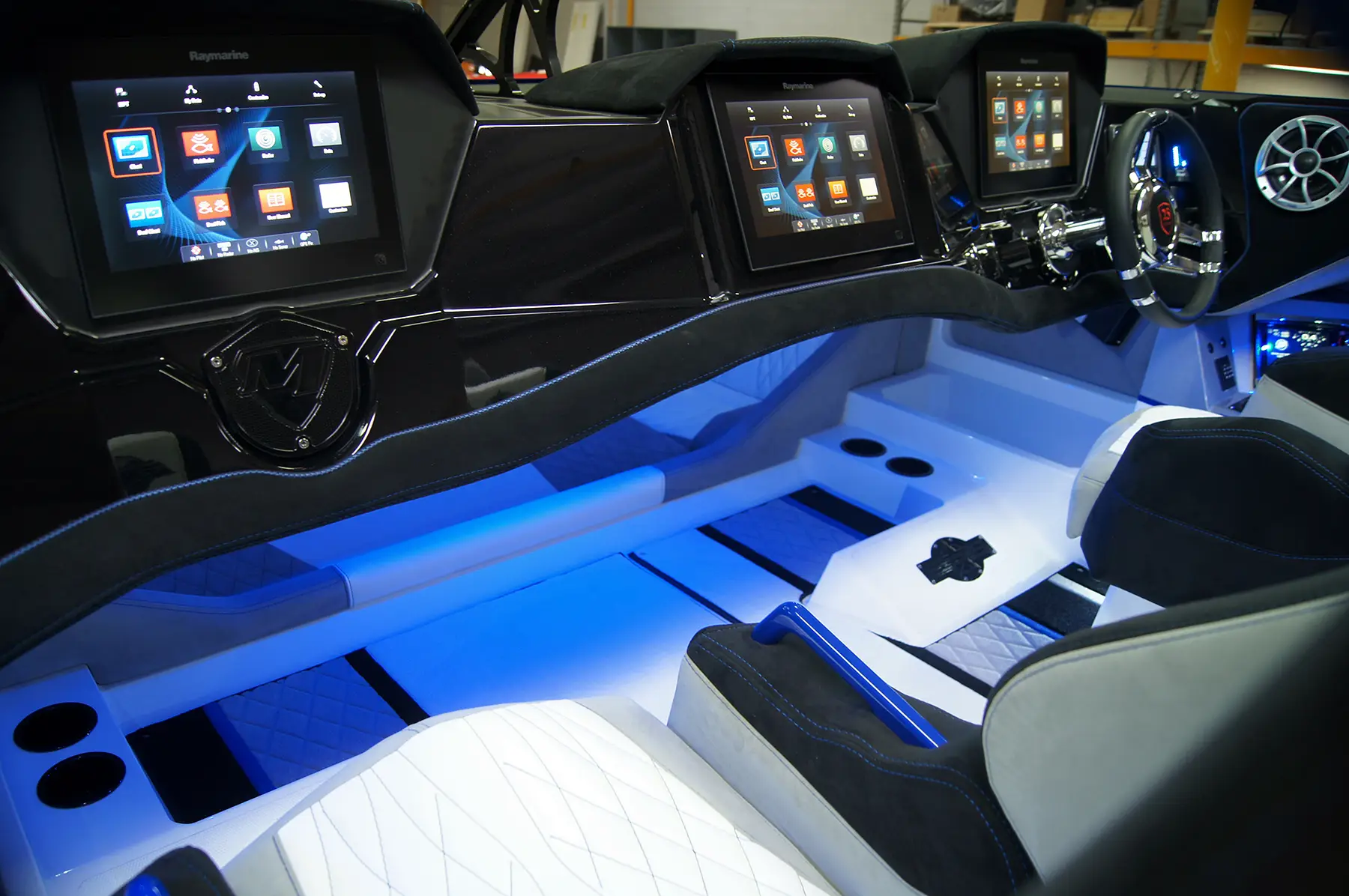

Lighting

Lighting Base Package

Test thing

Lighting Base Package

Tooltip

Lighting Base Package

Included

$0.00

2 LED RGBW under water lighting outside transom lights

1 LED RGBW under water center transom light

LED - backlit illumination on front seatbacks x2

# of LEDs

Please enter a number from 2 to 8.

This field is hidden when viewing the form

LED Money

Product Name

Price: $0.00

Lighting Sub-Total

Lighting Total

Lighting

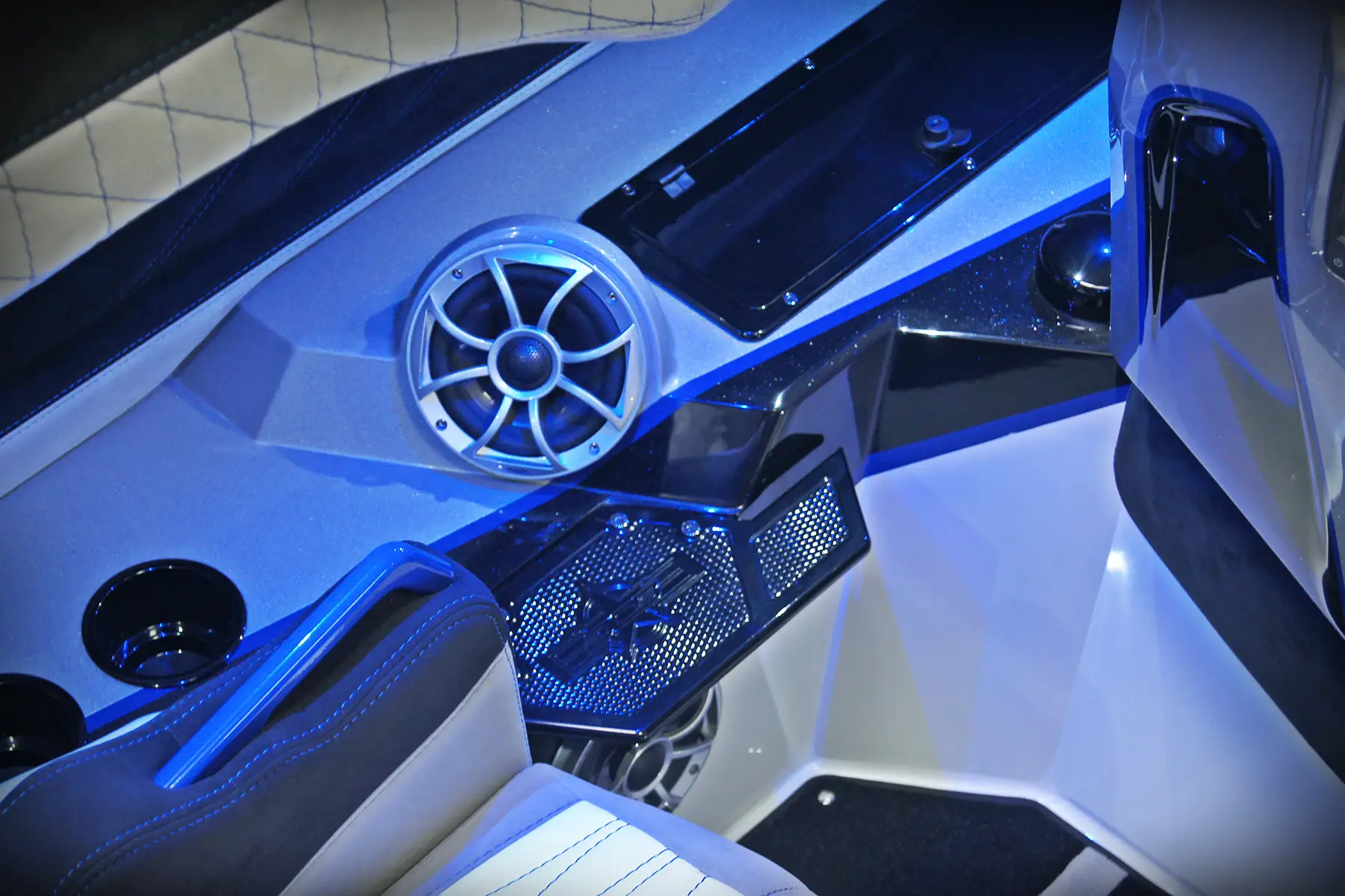

Stereo

Stereo Phase

Test thing

Phase 1

Tooltip

Phase 2

Tooltip

Phase 3

Tooltip

Phase 4

Tooltip

Phase 1

$0.00

Phase 2

$8,195.00

Phase 3

$9,595.00

Phase 4

$12,595.00

Phase 1 Options

Carbon fiber speaker grill kit 4 grills

Phase 2 Options

Carbon fiber speaker grill upgrade kit (Phase 2)

Carbon fiber speaker grill upgrade kit

4th AGM battery for all stereo phases with billet box

4th sodium lightweight battery (reduce by 30lbs) (Phase 2)

4th sodium lightweight battery (reduce by 30lbs)

Phase 3 Options

Carbon fiber speaker grill upgrade kit (Phase 3)

Carbon fiber speaker grill upgrade kit

Upgrade to all sodium light weight battery (reduce by 30lbs) (Phase 3)

Upgrade to all sodium light weight battery (reduce by 30lbs)

Phase 4 Options

Carbon fiber speaker grill upgrade kit (Phase 4)

Carbon fiber speaker grill upgrade kit

Upgrade to all sodium light weight battery (reduce by 30lbs) (Phase 4)

Upgrade to all sodium light weight battery (reduce by 30lbs)

Additions

Additional hard wired remote (each) (Phase 4)

Additional hard wired remote (each)

# of Additional Remotes

Please enter a number from 1 to 10.

Fusion bluetooth puck remote

This field is hidden when viewing the form

Total Remote Money

Remote Total

Price: $0.00

Stereo Options Sub-Total

Stereo Total

Stereo

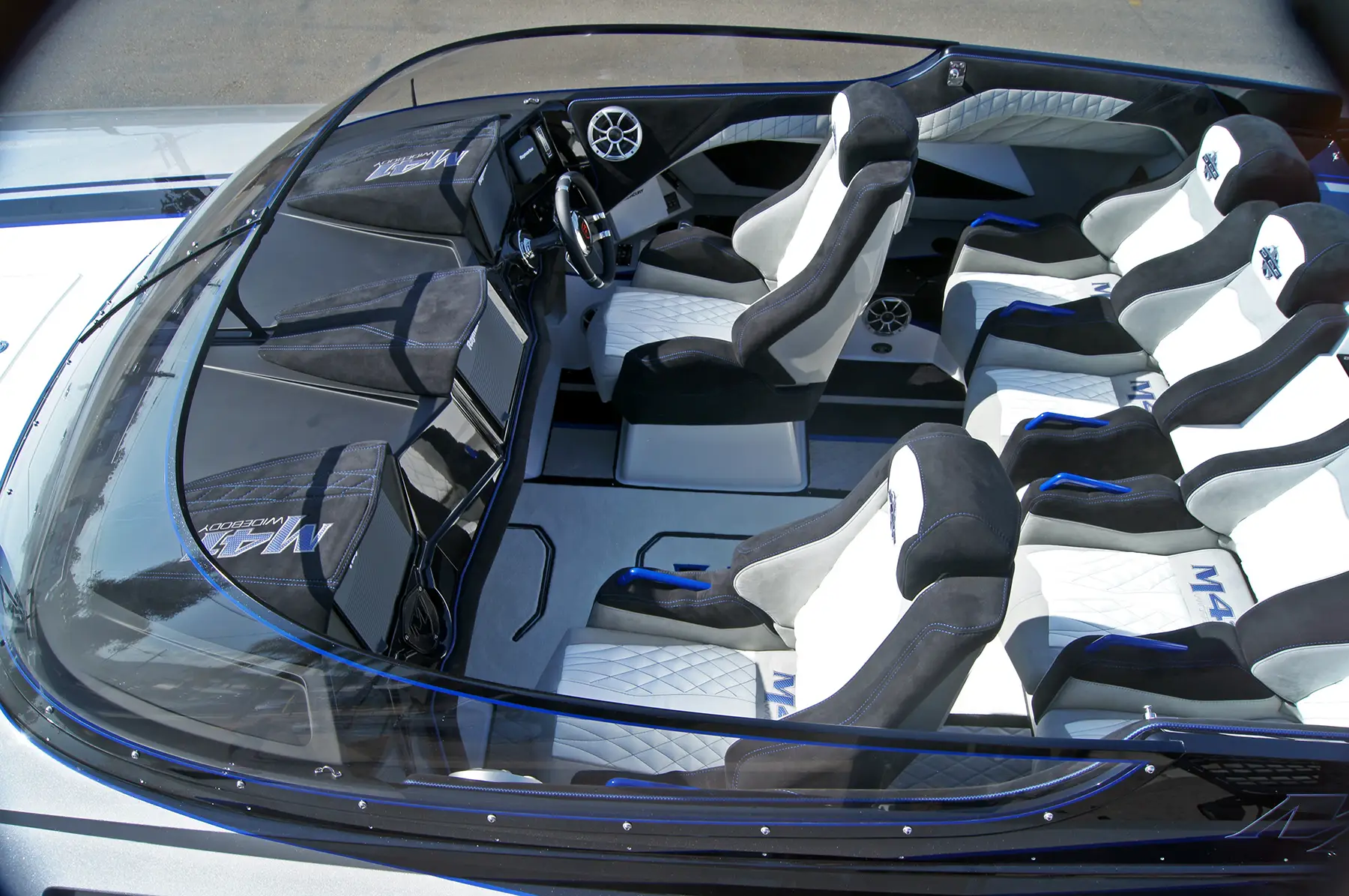

Interior

Interior Package

Test thing

Base Interior

Tooltip

Base Interior

Poker run style bucket seats, x8 grab handles, premium vinyl, french stitching

$0.00

Front helm seats ventilation system

2 ea 2 variable speed fan 150/195 cfm w/ 2 vents

Rear bench seat ventilation system

2 ea 2 variable speed fan 150/195 cfm w/ 2 vents

Diamond stitching on seats and side pane

Custom Mosiac 3D CNC stitched patterns

Material

Material Package

Test thing

Base Material

Tooltip

100% Cool Touch

Tooltip

75% Cool Touch 25% Alcantara

Tooltip

50% Cool Touch 50% Alcantara

Tooltip

25% Cool Touch 75% Alcantara

Tooltip

100% Alcantara

Base Material

Included

$0.00

100% Cool Touch

$5,595.00

75% Cool Touch 25% Alcantara

$6,095.00

50% Cool Touch 50% Alcantara

$8,595.00

25% Cool Touch 75% Alcantara

$11,095.00

100% Alcantara

$15,095.00

Custom

Headliner carpet in 2nd mid-cabin section w/ 2 love seats

Furnished under cuddy to match cockpit interior

Upgraded carpet kit with shaved diamond inserts

(3 color)

SeaDek cockpit kit 9mm thickness

(3 color)

Marine Mat cockpit kit

(3 color)

Upgrade to carpet kit over SeaDek cockpit kit

4 pole (carbon-fiber) with oversized canopy feature

Billet rear-view mirror mounted to window strut

1 umbrella mount in floor w/ Cerakote

2 Umbrella mounts on aft deck w/ Cerakote

Open bow conversion - full walk through

Umbrella mount in floor

Interior Options Sub-Total

Interior Total

Interior

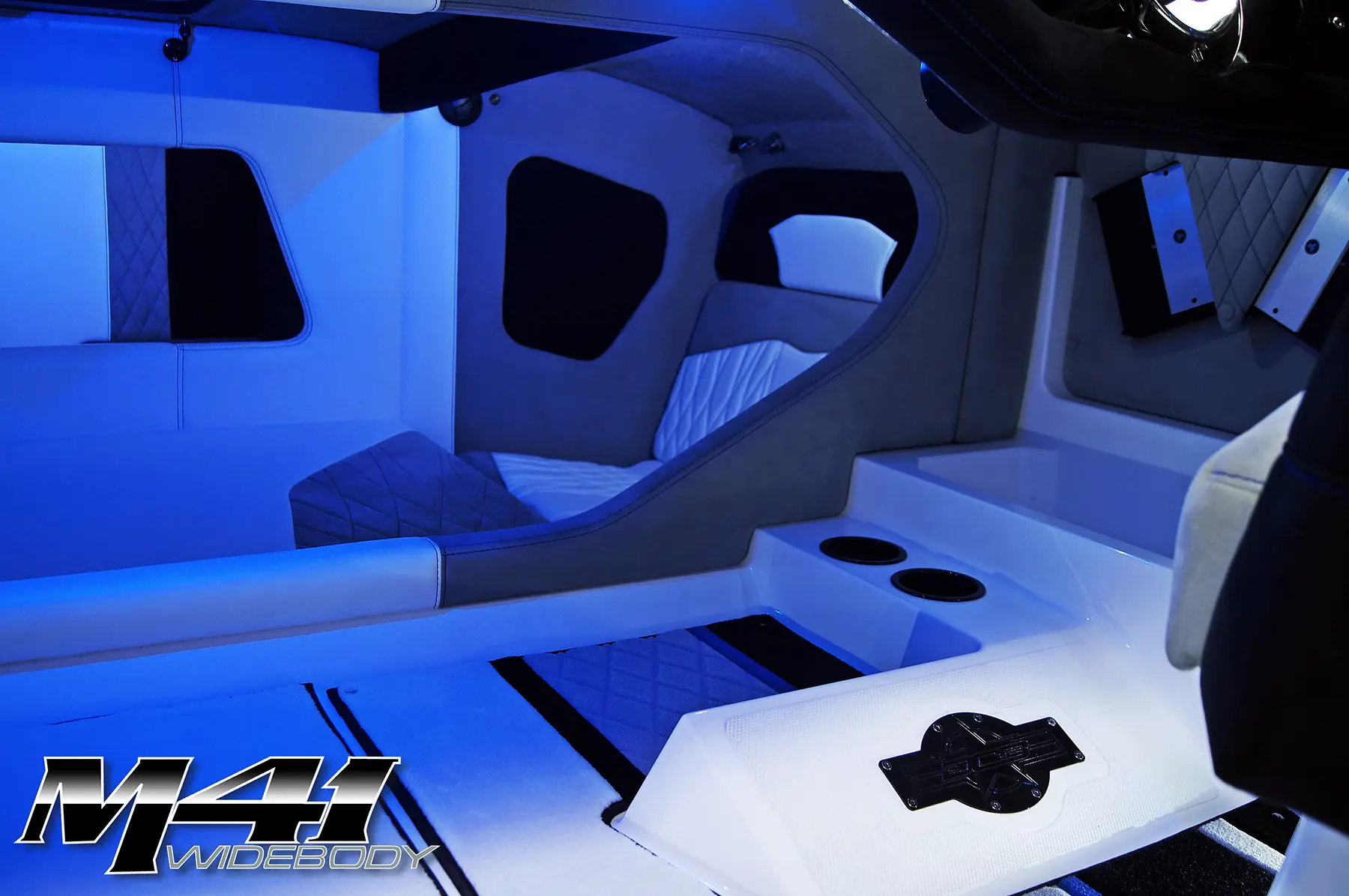

Boating Accessories

Mooring Package

Test thing

Mooring Package

Tooltip

Mooring Package

Included

$0.00

Poker run 3' x 4' carpet dock mat with DCB or M41 logo

Poker run 3' x 10' carpet deck mat with DCB or M41 logo

Propeller case

(17' x 17' hard case - pair)

Propeller cover

(16' soft cover - pair)

Shore spike

(size: large)

Heavy duty centered stern eye

for towing w/ reinforced backing plate

Fortress marine anchor

Fortress marine anchor size FX-23

Box Anchor

(size: large)

Accessories Sub-Total

Accessories Total

Boating Accessories

Safety Equipment

Base Package

Test thing

Base Package

Tooltip

Base Package

Included

$0.00

Color match LIFELINE VICTORY sport vest

Per Vest

# of Life Vests

Please enter a number from 1 to 10.

This field is hidden when viewing the form

Life Vest Money

Life Vest Total

Price: $0.00

USCG Kit

EPIRB locator beacon

Safety Equipment Sub-Total

Safety Equipment Total

Safety Equipment

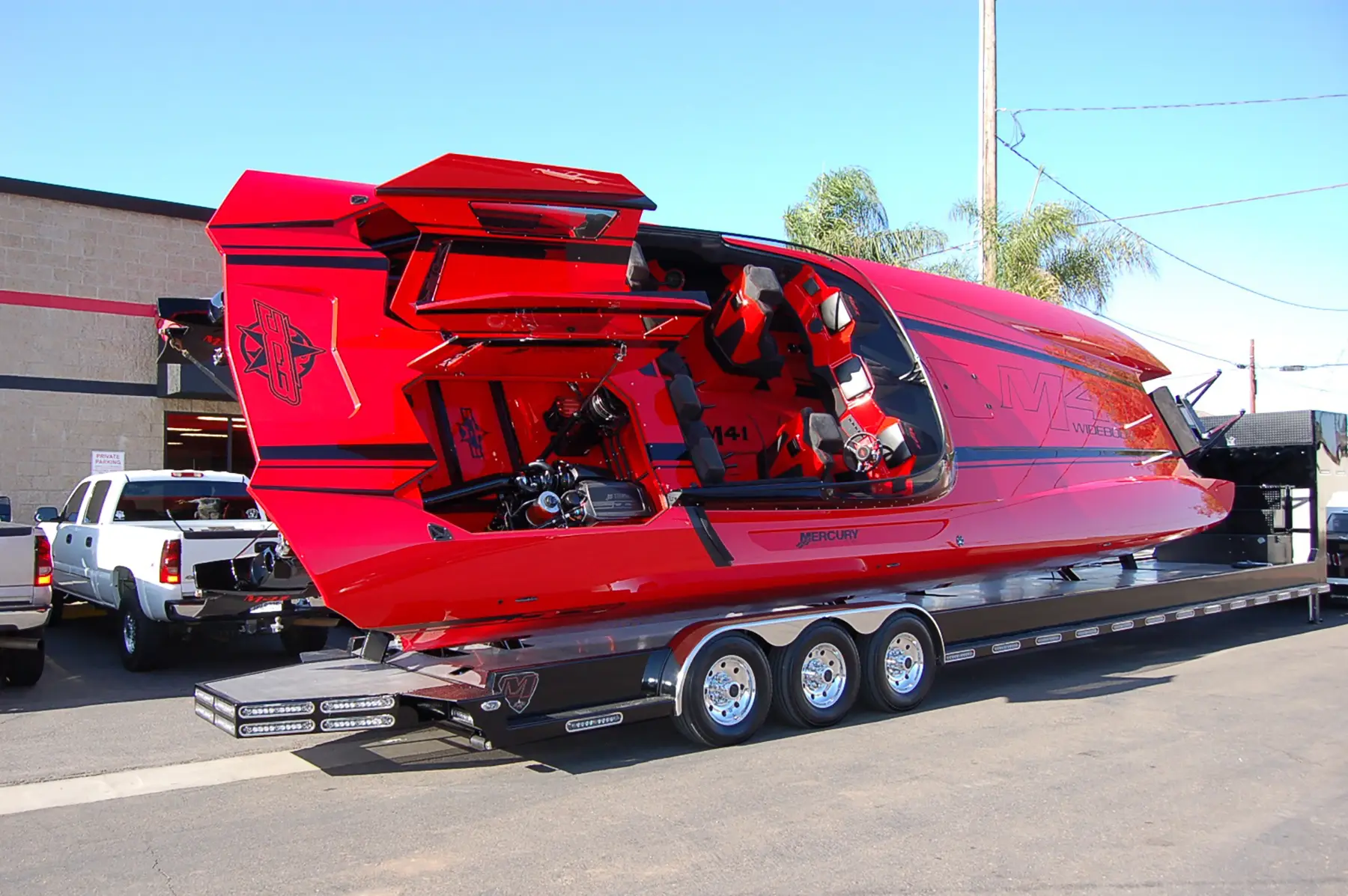

Canvas

Marine Concepts cockpit cover

(with snaps) black or gray

Marine Concepts soft dust cover

black or gray

Marine Concepts travel cover

w/ integrated installation straps black or gray

Low Profile Bimini 2 color

Low Profile Bimini 2 color Low Profile Bimini 2 color w/ mesh center section

Canvas Sub-Total

Canvas Total

Canvas

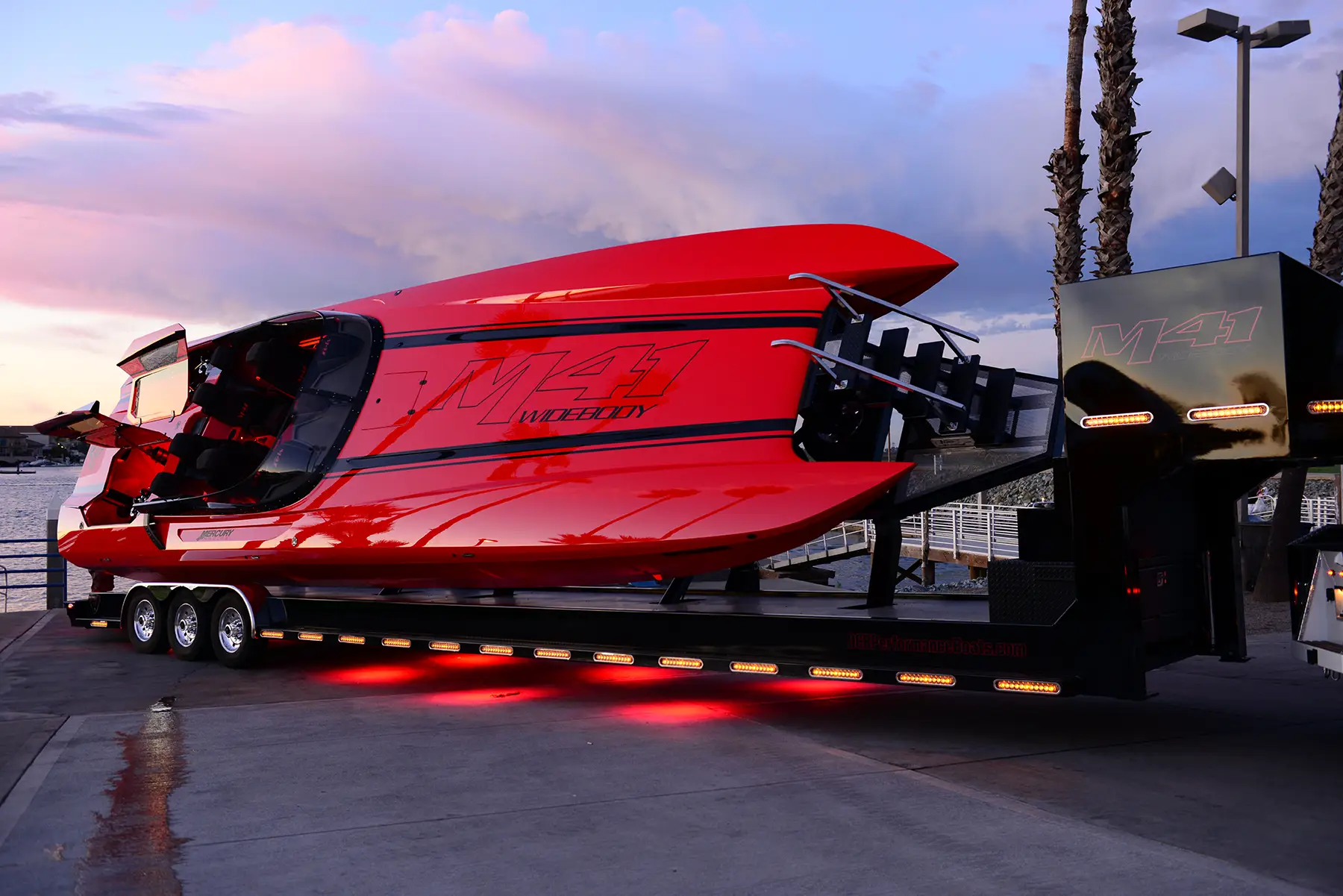

Trailer Package

Trailer Type

Test thing

Base

ADRENALINE Triple axle

Base

Tandem-axle with 16' rims

$0.00

ADRENALINE Triple axle

$15,095.00

Myco

Myco Trailer Package

Test thing

Myco tri axle aluminum unpainted trailer 12" welded C channel

Custom

18" wheel and tire upgrade

18in wheel and tire upgrade

20" wheel and tire upgrade

20in wheel and tire upgrade

Upgrade to clear coat aluminum

Upgrade from unpainted to black gloss paint

Triangular end drive guard

12x106 steel fenders

Custom fender steps

Custom fender steps with 15" LED and SS housings

Double handle courtesy ladder with SeaDek

LED running light package

LED runway loading light package

LED under carriage lighting package

Electric jack (5,000lb) with battery

Hydraulic jack

Electric winch w/ battery

Chip guard

Clear 3M film applied to front of main frame

TILT upgrade

galvanized steel-painted includes-5 extra bow/stern eyes w/ ratchet straps

Battery charger

Gooseneck package

Trailer Equipment Sub-Total

Trailer Equipment Total

Trailer

Base Price

This field is hidden when viewing the form

All Options Total

This field is hidden when viewing the form

Clonded Total

Total

Client

Client Name:

Stepped Center Pod Tunnel Hull

Stepped Center Pod Tunnel Base Package

$0.00

Hull Options Total:

$0.00

Engine

Engine Choice: Mercury Racing 1100 CC w/M8

$0.00

Engine Options Total:

$0.00

Drive/Steering

Drive/Steering Base Package

$0.00

Drive/Steering Options Total:

$0.00

Gel Coat/Graphics

Gel Coat Graphics Stage: Gel Coat Base Package

$0.00

Custom Graphic Design

$0.00

Gel Coat/Graphics Options Total:

$0.00

Branding

Branding Options Total:

$0.00

Rigging

Hardware Base Package

$0.00

Rigging Options Total:

$0.00

Carbon Fiber Accents

Carbon Fiber Options Total:

$0.00

Electronics

Electronic Base Package

$0.00

Gauges & Controls Package

$0.00

Electronics Options Total:

$0.00

Lighting

Lighting Base Package

$0.00

Lighting Options Total:

$0.00

Stereo

Stereo Phase: Phase 1

$0.00

Stereo Options Total:

$0.00

Interior

Base Interior

$0.00

Interior Options Total:

$0.00

Boating Accessories

Mooring Package

$0.00

Accessories Options Total:

$0.00

Safety Equipment

Base Package

$0.00

Safety Equipment Options Total:

$0.00

Canvas

Canvas Options Total:

$0.00

Trailer

Trailer Options Total:

$0.00

Grand Total:

$0.00

$9999.99

Generic Placeholder Content

Lorem ipsum dolor sit amet
Consectetur adipiscing elit
Sed do eiusmod tempor incididunt
Labore et dolore magna aliqua

Stepped Center Pod Tunnel

Vacuum infused resin (VIR) process, balsa composite lamination schedule
Full wrap around windshield 5/8″ thick acrylic w/ billet center brace
Carbon-fiber stiffening – included in M35 pricing
Carbon-Kevlar – included in M35 pricing
Gelcoated deck hatches w/ gas assist struts
One piece inner-liner cockpit • Molded swimstep w/ billet grab handles
Blue-printed running surface • Polished stainless rubrail
DCB premium quality rigging, installation and workmanship • Rigged to NMMA & USCG standards
DCB standard vinyl graphic pkg for boat and trailer, 21 in total
2 – 1500 & 1 – 850 GPH bilge pumps with automatic floats
2 – 4″ bilge blowers

Gel Coat Base Package

High gloss white gel coat with black windshield register
Custom bow and stern half cap

Custom Graphic Design

Wes Jones Design • Gel coat • SeaDek • Interior • Carpet • UP TO 20 RENDERINGS
Additional design work will be an additional charge

Hardware Base Package

Exclusive DCB billet parts 100% hand polished SS fasteners
6 SS half-inch pre-sewn pin cleats • 6 SS pull-up cleats • 8 LED cup holders
2 DCB prop shaft covers • Garelick 3-step w/ integrated warning sensor
1 SS bow eye w/reinforced backing plate • 2 SS stern eyes w/reinforced backing plate
3 battery boxes • 6 grab handles

Electronic Standard Features

BlueSea manual switch battery management house, engine- parallel w/ isolators
3 Odyssey 1500 marine deep cycle batteries, 1 for each engine plus the house
Pronautic smart marine battery charger

Gauges & Controls Package

1 Garmin 743 7″ screen multi function for navigation and engine data
Mercury zero effort digital controls w 565 & 1100 Latham offshore shift throttle control w/600/700
Mercury SmartCraft connect, compatible with Garmin • GPS 24XD antenna
Isotta Steering Wheel • IMCO billet tilt helm
*NOTE choice between starboard or port helm controls – comes as starboard

Base Steering and Drive

Standard Steering Wheel Description
Standard Propeller Description

Base Interior

Poker run bucket style seating 6 seater
Fiberglass seatback with one-color gelcoat
Single-piece padded 100% Alcantara dash pad (reduces windshield glare)
Premium vinyl • French stitching
Custom plush 1-color snap-in carpet with DCB or M35 logo
DCB M-series embroidery package
1 12-volt receptacles • 2 USB ports • 2 glove boxes

Mooring Package

6 fenders
6 DCB fender sleeves
6 dock lines

Base Package

Each new boat purchase includes 1 Lifeline jacket at N/C ($795)
USCG approved mounted horn • Kill switch lanyard w/ wrist strap
1 chrome fire extinguisher with billet bracket • 1 Fireboy extinguisher
DCB is a proud supporter of www.PerformanceBoatSchool.com

Mercury Racing 1100 CC w/M8

Rated HP – 1100
Compression Ratio – 7.8:1
Displacement – 9.0L
Full Throttle RPM – 6000-6500

+ $40,000

Mercury Racing 1100/1350 CC w/M8

Rated HP – 1350
Compression Ratio – 7.8:1
Displacement – 9.0L
Full Throttle RPM – 6000-6500

+ $90,000

Mercury Racing 1350/1550 DL w/ M8

Rated HP – 1550
Compression Ratio – 7.8:1
Displacement – 9.0L
Full Throttle RPM – 6200-6800

PHASE 1 includes

Fusion Marine head unit
4 7.7″ speakers
2 6.5 speakers

$8,195

PHASE 2 includes

Fusion marine bluetooth/Wifi head unit
1 JL Audio 8-channel amplifier for x8 midrange speakers
1 JL Audio 1-channel amplifier for x2 subwoofers
4 JL Audio 6.5″ coaxial speaker
4 JL Audio 7.7″ coaxial speaker
2 JL Audio 10″ M6 subwoofers
1 Fusion hard wired stereo control at dash

$9,595.00

PHASE 3 includes

Fusion marine bluetooth/Wifi head unit
1 JL Audio 8-channel amplifier for x8 midrange speakers
1 JL Audio 1-channel amplifier for x2 subwoofers
4 JL Audio 6.5″ coaxial speaker
4 JL Audio 7.7″ coaxial speaker
2 JL Audio 12″ M7 free-air subwoofers
1 Fusion hard wired stereo control + 1 Additional Battery with Billet Box

$12,595.00

PHASE 4 includes

Fusion marine bluetooth/Wifi head unit
2 JL Audio 8-channel amplifier for x12 midrange speakers
1 JL Audio 1-channel amplifier for x4 subwoofers
2 JL Audio 12″ M7 free air subwoofers under dash
4 JL Audio 7.7″ coaxial speakers
4 JL Audio 6.5″ coaxial speakers
2 JL Audio 10″ M6 subwoofers in rear seat base
1 Fusion hard wired stereo control + 1 Additional battery with billet box

Trailer Base Package

8″ Steel box frame, tandem torsion axles, and dual electro-hydraulic disc brakes
16″ aluminum wheels & tires w/ spare • 2 tie down ratchet straps • NO drive guard
Steel fenders, standard LED light pkg
2 manual winch’s, 1 forward 1 down • Spare tire mount
1 hand rail courtesy ladder
